OVERVIEW

Carlson Survey is designed to complement land surveying operations and provides a variety of survey features to process data from surface modeling to Least Squares Network Adjustment. Users work seamlessly between the office and the field by utilizing company-wide design styles for ease of use and efficiency.

Choose your platform – Carlson Survey works on:
■ IntelliCAD® (built-in)
■ AutoCAD® OEM (built-in)
■ AutoCAD® (sold separately)

SURVEY
  • DATA COLLECTION INTERFACES
  • Upload and download to popular data collectors
  • TRAVERSE ADJUSTMENT
  • Spreadsheet editor for raw data with graphics and processing for traverse adjustments
  • SURVNET
  • Advanced network least-squares for total station, GPS and level data
  • FIELD-TO-FINISH
  • Draw points with styles and in point groups set by point descriptions and draw linework by several flexible methods
  • FIELD-TO-FINISH INSPECTOR
  • Inspect all field-to-finish elements, see description source and re-draw based on descriptions edits
  • COGO
  • Streamlined inverse, traverse, sideshot, intersections, interpolation, translate, rotate, scale and align
  • COORDINATE TRANSFORMATIONS
  • Transform coordinates and screen entities between lat/lon and grid projections as well as local to local by Helmert and least-squares methods
  • DEEDS

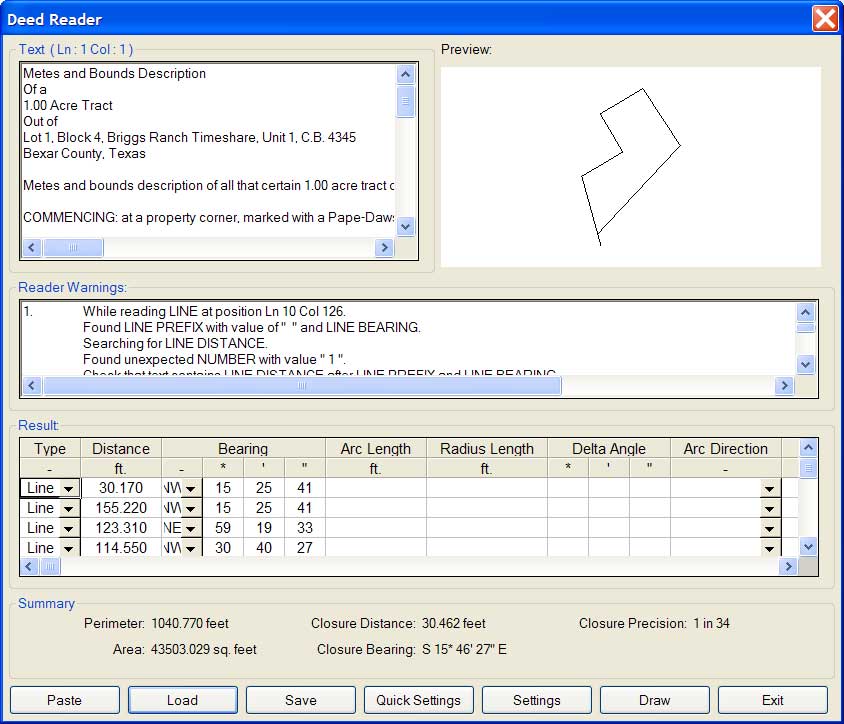

  • Enter deed by description, read deed data from deed file, deed reports, deed correlation and generate legal description from drawing
  • CUT SHEETS
  • Create custom cut sheet reports with reference grades and station-offsets

POINTS
  • IMPORT/EXPORT
  • User-defined import and export of point data along with conversions with specific other formats
  • DRAW POINTS
  • Draw points with settings for symbols, layers and styles
  • POINT GROUPS
  • Point group manager to define sets of point by filters
  • COORDINATE FILE HISTORY
  • Tracks all changes to points with report and undo functions
  • FIX POINT LABEL OVERLAPS
  • Finds point label overlaps with rule options to fix automatically
  • POINT TOOLS
  • Utilities for modify point labels such as move with leader, twist and resize

AREA/LAYOUT
  • LABEL AREAS
  • Customized area label styles and several methods to select areas to label
  • SIZE AREAS
  • Sliding side area, hinged area, area radial from curve and bearing area cutoff
  • LOT MANAGER
  • Lot definitions by point numbers with functions to create lots, conduct mapcheck for closure, edit in spreadsheet with graphics, report lots and draw lots
  • LOT LAYOUT
  • Size lots along alignment with controls for target area, setback and frontage
  • OFFSETS, INTERSECTION AND CUL-DE-SACS
  • Layout for ROW and EOP linework

ANNOTATION
  • ANGLE & DISTANCE LABELS
  • Flexible routines to label linework in all possible layout combinations plus available rules to automatically fix label overlaps and revise labels when entities move
  • CURVE LABELS
  • Label curve data in stack, along arc or in table
  • SURVEY TEXT
  • Routines to create typical plat labels such as offset and building dimensions
  • LABEL ELEVATIONS
  • Label spot elevations along an alignment
  • LINETYPES
  • Draw special linetypes

SURFACES
  • BUILD SURFACES
  • By triangulation or rectangular grids
  • CONTOURING
  • One step triangulate and contour from 3D entities as well as contouring from surface files
  • SURFACE MANAGER
  • Change surface display properties and adjust surface functions to add and remove points and breaklines and swap edges
  • VOLUMES
  • Earthwork volumes between triangulation or grid surfaces
  • PAD DESIGN
  • Tie cut/fill slopes from pad perimeter to surface, build pad surface, calculate and balance volumes, and edit pad parameters

CENTERLINES & PROFILES
  • DESIGN AND EDIT CENTERLINES
  • Design or input alignments on screen or in dialog with graphics
  • LABEL STATIONS AND OFFSETS
  • Annotate station and offsets along centerline and at selected points
  • CALCULATE OFFSETS
  • Reports stations and offsets for selected points along centerline
  • CREATE OFFSET POINTS
  • Create points at specified stations and offsets
  • SPIRALS
  • Flexible handling of the most complex spiral curves including spiral-only elements going arc-spiral-arc, arc-spiral-line and line-spiral-line
  • CREATE PROFILES
  • From surfaces, screen entities, points on centerline, etc.
  • QUICK PROFILE
  • One step profile creation with real-time update while adjusting centerline
  • INPUT-EDIT PROFILES
  • Enter profile data in dual spreadsheet and graphic window, and design in reference to controlling profile grade points
  • DRAW PROFILES

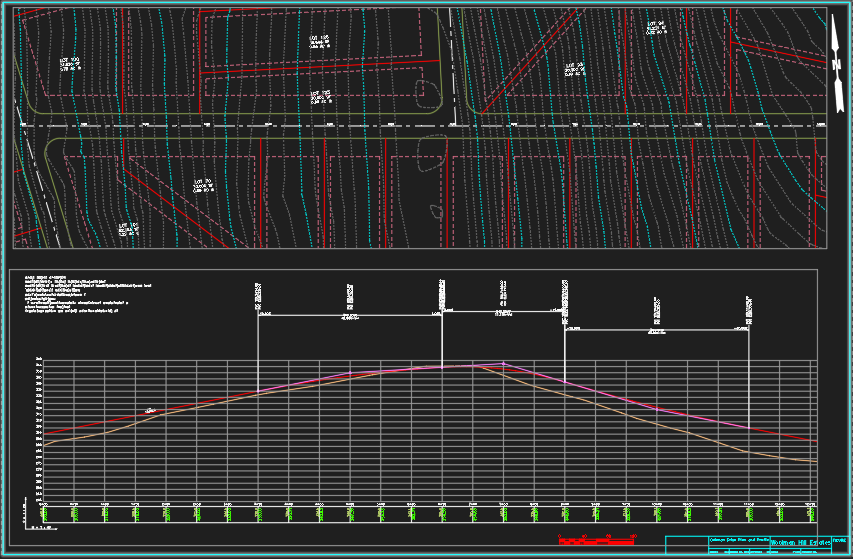

  • Draws profiles on grids or plan-profile sheets with auto-updating based on edits
  • PROFILES TO 3D
  • Create points and 3D polylines from profiles

OVERVIEW

Carlson’s latest desktop software release brings users new features, increased speed, and more efficient workflows. Fully compatible with Windows 11, Carlson 2022 comes with the power of IntelliCAD 10.1, the newly-released update to CAD platform that brings increased speed and new features for Carlson users, and is also compatible with AutoCAD 2017-2022. The 2022 release also delivers powerful new features such as above ground feature extraction, as well as many other time-saving innovations and automated new features, as well as improvements to many major existing elements.

NEW FEATURES

  • Drone Mission Planning – New command to create a drone mission plan.
  • Carlson PhotoCapture – Added method to download files by file type.
  • Collison Check – Added option to draw 3D lines between the crossing pipes along with 3D text for 3D viewing. Added coloring of pipe portions that have conflicts. Added report of minimum horizontal and vertical clearance. Added method to check for collision with a surface model. Added option to color pipe segments with a conflict.
  • Utility Network – For pipe labels, added settings to control offset from line and layer for labels. For creating profile at depth, added method to create streamlined profile with min number of profile points and ability to set max depth and min segment length. Added report function to check pipe depths and min/max cover. Added a description field for each utility with option to label in Draw Profile and Draw Sections. For laterals, added location by offset and slope.
  • Design Parking Inside Perimeter – Added ability to create islands at ends of parking rows. Added option whether to create spaces around the perimeter and option to add remainder parking space to the corner.
  • Design Parking Along Alignment – Added support for alignments with multiple segments, ability to use a polyline or centerline file for the alignment, and support for angled parking. Added functions to create auto treatments and to mirror treatments between left and right sides.
  • Automatic TIN (surface model) creation directly from the Draw Field to Finish dialog box
  • Bare Earth – Added option to put the ground points into a region instead of creating a new cloud. Added method to create a cloud of the non-ground points.
  • Extract Slices – New function to view cross sections of cloud data and create points and polylines.
  • Curb Breaklines – New method to create 3D polylines for top and bottom of curb by using edge clusters.
  • Create Breaklines By Slope – New function to create 3D polylines at the boundaries of slope zones.
  • Color Lines – Added new method for creating polylines that follow color lines in the cloud such as roadway paint stripes and new method to follow color boundaries such as edge between pavement and grass.
  • Feature Extraction – Added batch process method to extract multiple features at a time.
  • Power Lines – New function to extract overhead wires as polylines.

General

  • AutoCAD 2022 – Added support for this new version.
  • IntelliCAD 10.1 – Improved speed and new features like sheet sets with the Publish command.
  • Toolbars – Added over 30 new toolbar icons and a new ribbon for GeoTech.
  • Open Drawings Map – Added method for custom properties for drawing records and method to store a drawing database on a shared network location. From the Map view, added function to open Windows File Explorer for the drawing’s project folder.
  • Settings Server – Added method to copy data files into project folders.
  • Project Data Sub-Folders – Added separate Program Settings folder for settings files.
  • Data Depot – Added details to the history log and the ability to restore a previous version of a data file. Adding files to Data Depot supports working from project level with controls on which files to add.
  • Carlson Configure – Added setting to control font used for dialogs.
  • Select CAD Default Settings – New command to choose classic or modern CAD user interface settings.
  • Drawing Cleanup – Added functions to remove duplicate text and to remove unused registered apps.
  • Import Polyline File – Added method for locating by station/offset values from the file.
  • Drawing Inspector – For polylines, added reporting of current position distance. For centerline polylines, added reporting of spiral data.
  • Draw MText – In many commands that create MText, added an option to set the Text Frame to draw a box around the text.
  • Translate Layers – Added method to import layer names from the drawing.
  • Line Up Text – Added method to pick two points to define angle, option to respace and option to use text for alignment reference.
  • Arrowhead with Line – New command to draw a two point leader with an arrowhead.
  • Boundary Polyline – Added option to create 3D polyline.
  • Shrink-Wrap Entities – Added options to ignore zero elevation entities for input, to elevate zero elevation vertices, and to erase the input entities.
  • Add Intersection Points – Added option to average elevations at intersection within a tolerance.
  • Draw Label For Companion Linework – New command for Draw To Standard to create a label using properties by layer.
  • Draw Standard Item by Quick Key – New command to create entities for Draw To Standard by typing a quick key instead of dialog list selection.
  • Reports – For PDF reports, added option to make PDF report files read-only. For Report Formatter, new option to put text lines at the bottom of the report and added function to sort the list of available fields.
  • 3D Viewer – Added zoom extents function.
  • Angle Info –Added ability to handle 3D angles.
  • Layer ID – Added option to label the layer name.
  • Command Search – Added reporting of toolbars for the commands.
  • Drone Mission Planning – New command to create a drone mission plan.
  • Carlson PhotoCapture – Added method to download files by file type.
  • Input/Entry Distance Scale – Added method to scale distances in many COGO commands such as Enter Deed Description.
  • Import Text/ASCII File – Added ability to read points from a SurvCE/Layout job database (.jdb) file. Added functions to save and load settings to a .rpnt file.
  • Import Distance/Angle File – Added field for deed name for importing multiple deeds.
  • Edit Process Raw Data – Added function to update the descriptions in the RW5 from a coordinate file. Added function to apply Field-to-Finish substitution codes to the descriptions in the RW5 file. Added report option for the description on the same line as the data. Added an optional warning on processing for points with a blank description. Added option to use a larger font for the spreadsheet. For processing GPS records added storing the lat/lon and RMS values to the CRDB as attributes.
  • Edit Process Level Data – Added method to adjust elevations based on the number of turns.
  • SurvNET – Added option to merge output point text file with control points.
  • Draw Points – Added option to label elevations in inches.
  • Point Group Manager – Added methods to create a point group of points unassigned to a group and to create group from point number suffix.
  • Field to Finish – Added ability to run Triangulate & Contour to draw contours or make a TIN of the points and polylines.
  • Added new utility feature. For pipe features, added ability for separate pipe feature settings per code, option to label structure names along the pipe and option to draw both pipe 3D faces and polylines. For tree features, added offset by tree symbol size as factor of text offset, added option to draw labels as MText and added settings to control order of input parameters. Added setting for annotative points per code. For GIS attributes on a line, added support for multiple attributes. Added option to match first symbol scale when creating a second symbol. New special code of OO for Offset Only that draws only the offset polyline. For OH offset horizontal special code, added method to repeat the offset multiple times. For hedge linetype, added ability to control width using OH or OFB special codes. For RECT special code, added setting for using a third point as a rectangle corner or an offset for the rectangle width. For text attributes prefix/suffix settings, as string of [DESC] gets replaced by the point description. Added method to draw only points with GPS status of Fixed. Added option to hide the drawing under the Mtext labels. Added support for using fixed parameters with multiple codes.
  • Offset Point Entry – Added option for slope stations.
  • Annotation – Added option to use a custom block for endpoint leaders. For Stack Label Arc and Annotate With Leader,
  • added option to create as MLeaders. For bearing leaders, added support for annotative leaders.
  • Line/Curve Table – Added option to draw the table as MText without the grid lines.
  • Stack Label Arc Auto Place – New command to automatically place the arc labels at the mid-point of the arc.
  • Stack Label Arc Pick Side – Added option whether to draw leader.
  • Label Angle – Added method to create an angle table. Added ability to handle 3D angles.
  • Distance Table – New command to create a distance table of pairs of points and distances.
  • Offset Dimensions – Added option to use CAD’s current dimension style.
  • Linetypes – Added method for multiple dashes between the symbol/letter such as —C—C—.
  • Legal Description – Added method to report exterior angles.
  • Map Check – Added support for azimuth format angles.
  • Deed Correlation – Added method to screen pick points.
  • Process Deed File – Added option to report using the Report Formatter.
  • Area Descriptions By Interior Text – New command to tag area descriptions by automatically finding text inside polylines.
  • Best Fit Line – Added method to screen pick CAD points, method to add more points to the calculation and option to set output layer.
  • Convert CRD to ASCII By Folder – New command to batch process converting coordinate files to text files.
  • Triangulation Surface Manager – Add Point inside TIN hole has new option to fill the hole.
  • Triangulation File Utilities – Added a Remove Spikes tool and added function to draw drainage low points.
  • Grid File Utilities – Added export for DEM files.
  • Triangulate & Contour – Added option to use linetype for depression contours.
  • TIN Rebuild Inside Perimeter – Added method to apply inverse distance to adjust elevations within a perimeter. Added method to raise low points within a perimeter to fill-in low points to prevent ponding.
  • 2D to 3D Polyline By Profile – New command to elevate a polyline using a profile.
  • 2D to 3D Polyline By Screen – Added method to extrapolate elevations.
  • Curb Ramp – Added graphic preview to dialog. Added option to taper only the first ramp section. Added method to do curbcut only with no ramp. Added method to pick the curb position separately from the polyline selection. Added a separate curb taper method.
  • Wall Polyline Editor – Added layback slope, freeboard, bury depth, output to solid model (.mdl), color/texture for 3D viewing, and report including backfill quantities and wall volume. Added double-click on the wall polyline to run the wall polyline editor. Added support for using wall polylines in Takeoff design surface modeling.
  • Elevate Pads By Grade Rules – Added option to add break points to lot lines and option to create swales.
  • Cut/Fill Movement – Added option to label cells.
  • Stockpile Volume – Added method to use lowest elevation around perimeter as flat base elevation.
  • Surface 3D FlyOver – Added support for viewing solid models (.mdl). Added settings for camera based light and shading for front, back or both sides. Add Model to the scene also draws a symbol in the drawing when the Model Library has the model defined with a CAD symbol.
  • Slope At Points – Added method to use a coordinate file and two points to define the slope.
  • Elevation Zone Analysis – Added method to use TIN surface and set colors in the TIN file for the elevation zones.
  • [doc] Vehicle Path Tracking – Added option to draw section view of vehicle with dimensions and added vehicle section view preview to dialog.
  • Polyline To Centerline File – Added method to define station at a reference point.
  • Label Station Offset – Added method to label CL crossings in plan view with option to label layer names.
  • Design Parking Inside Perimeter – Added ability to create islands at ends of parking rows. Added option whether to create spaces around the perimeter and option to add remainder parking space to the corner.
  • Design Parking Along Alignment – Added support for alignments with multiple segments, ability to use a polyline or centerline file for the alignment, and support for angled parking. Added functions to create auto treatments and to mirror treatments between left and right sides.
  • Draw Template Polylines – Added option to densify the template polylines.
  • Template Series File – Added interpolation option for none.
  • Shrink/Swell Table – New command to define different shrink/swell factors by station range for cut/fill and subgrade materials.
  • Draw Super Elevation Color Centerline – New command to draw the centerline polyline with colors for the super elevation transition zones.
  • Process Road Design – Added method to Template Point Profile to apply change in slope to another grade for a divided highway. Added method to use clip lines at the ends of the road for skewed ends.
  • Road Network – Added method to create a bottom of subgrade surface. Added method to hatch the template grade areas. Added method for road template gaps by station range.
  • Lot Network > Road Network – Added option to chamfer ROW intersections instead of arcs.
  • Station Polyline/Centerline – Added method to store deflection angle into the point description.
  • Draw Profile – Added option for fixed grid top/bottom elevations. Added option to draw horizontal line at bottom of elevation axis labels. Added option for line under label base elevations. For utility profiles, added pipe thickness and option to limit max offset for station by reference CL. For hatch, added option to label areas. For sewer profile labels above the rim, added method to place by grid top location and option for vertical labels with a leader from the rim. Added option to label manhole names using MText.
  • Draw Section File – Added method to label the total section distance. For tunnel sections, added support for end areas from a single closed section. Added option to create labels as MText.
  • Added ability to set a description for each station that can be drawn in Draw Section File and reported in Section Report. For slope labels, added filter by user-specified slope amount.
  • Section File Editor – Added ability in translate elevations to use a profile to adjust the sections.
  • Section Report – Added method to only report user-specified offsets.
  • Set Descriptions By Offset – New command to set cross section descriptions by offset.
  • Draw Mass Diagram – Added method to graph as immediate cut/fill difference instead of accumulative.
  • Rain Lookup Table – New command to store custom rain events.
  • Merge Watersheds – New command to combine the polyline perimeters of neighboring watersheds.
  • Time of Concentration – Added Kerby-Kirpich method.
  • Channel Routing – Added Muskingom-Cunge and Modified Puls methods.
  • Pond Exfiltration – Added functions to save and load parmaters to a .pdx file.
  • Drop Pipe Spillway – Added lookup table for entrance loss coefficient. Added functions to save and load parameters to a .drop file. Added PDF report and function to draw diagram to the drawing.
  • Pipe Culvert Design – Added report option for stage-discharge graph and option to draw HGL on pipe detail graph. Added support for Muskingom-Cunge method.
  • Advanced Weir Design – Added functions to save and load parameters to a .weir file.
  • Orifice Design – Added functions to save and load parameters to a .outlet file.
  • Multiple Outlet Design – Added PDF report method with diagram and stage-discharge graph.
  • Sewer Network – Added ability to automatically set inlet as on-grade or sag based on the surface. Added support for Inlet Control Devices to limit intercepted flow. Added support for structures with underdrains. Added new yard inlet structure. For SCS rainfall lookup, added methods to choose from lookup table, rain map or NOAA. Added method to round elevations by decimal precision. For draw plan view, added setting for direction of pipe polylines as upstream or downstream. For data table, added ability to control which structures to include in the table. For Review Sewer Network Links, added a method to reassign the data files. Added pipe thickness to editor and reports. Added setting for having raised rim heights. Added a new Line Name field for each structure.
  • Collison Check – Added option to draw 3D lines between the crossing pipes along with 3D text for 3D viewing. Added coloring of pipe portions that have conflicts. Added report of minimum horizontal and vertical clearance. Added method to check for collision with a surface model. Added option to color pipe segments with a conflict.
  • Compare Sewer Networks – New command to report differences between two sewer network models.
  • Draw Sewer Profile – Added ability to draw profiles for normal and critical depth lines.
  • HydroNet Explorer – Added support for circular pipe reach and culverts. Added support for the Clark and Snyder hydrograph method. For draw plan view, added options to create MText labels, draw connection lines, use default symbols and save/load settings. For reports, added method to control the order of elements.
  • Utility Network – For pipe labels, added settings to control offset from line and layer for labels. For creating profile at depth, added method to create streamlined profile with min number of profile points and ability to set max depth and min segment length. Added report function to check pipe depths and min/max cover. Added a description field for each utility with option to label in Draw Profile and Draw Sections. For laterals, added location by offset and slope.
  • Pressure Pipe Network – Upgraded calculation engine to EPANet 2.2. Added ability to set tank level to create specified pressure. Added ability to add multiple connections or laterals at a time with a specified station interval and demand. Upgraded interface for setting up demand patterns. Added ability to draw symbols for valves in plan view.
  • Pipe Network ID – New command to pick a pipe network entity and report which pipe network model it belongs to.
  • Review Network Drawing Links – New command to review pipe network entities in the drawing and report network files with ability to reassign network files.
  • HEC RAS – Added method to output a cross section of the water level. Added support for version 6.0.
  • Upgraded User-Interface – New dialogs for many commands including GIS Data Editor and GIS Data Inspector.
  • Define GIS Features – Added import for StartNET, ESRI SHP and Carlson GIS .db features.
  • Point GIS Editor – Added import for StartNET attributes.
  • Place Camera Symbol – Added method to use points.
  • Surface Mine Reserves – Added custom strip ratio formula. Added non-key tonnage to stored pit attributes.
  • Prepare Value Block Model – Added cut surface and value calculation method tracking and grid info. Added export to text file function.
  • Assign Directions – Added support to define directions by lines or leaders.
  • Surface Equipment Timing – For 3D Pick, added ability to turn benches on/off. Added delay amounts to the report. Added output of period centroids to the spoil timing output file. Added option to skip non-key for timing.
  • View Surface History – Added method to color surfaces by timing periods.
  • Label Pit Formatter – Added options for commas in numbers and for higher order rounding.
  • Block Model Viewer – Improved loading speed by over 10 times. Added option to merge matching grade blocks, option to render the outer shell of grades, option to tag blocks for inspecting in the viewer and ability to set the transparency of block by grade.
  • Block Model Statistics – Added method to report by grades.
  • Make Solid From Design – Added support for vertical alignments. Added option to draw cross section and template 3D polylines.
  • Make Solid By 3D Triangulation – New command to create a 3D solid for a tunnel from a point cloud.
  • Create Gap Points – New command to create points on a plane to fill in gaps in the point cloud.
  • View Solid – Added setting for separate color for back side of 3D Faces.
  • Draw 3D Mine Model – Added method to output an MDL file.

Carlson Geology

  • StrataCalc – Added new configure setting to limit pinchout by strata name range.
  • Draw Geologic Column – Added complete custom control over formatting and which values to label. Added option to label bed thickness.
  • Drillhole Text – Added method to create MText.
  • Google Earth Drillholes – New command to tag drillhole symbols with drillhole/strata labels for viewing in Google Earth.

CADnet

  • 3D Image Viewer – Added method to download aerial image from Google Earth.

Construction/Trench

  • Convert Dashes to Polylines – Added individual method to trace by picking starting segment.
  • Topsoil Removal – Added method to assign topsoil removal as outside of subgrade areas.
  • Input Trench Line – Added option to interpolate invert elevations in case of junction without elevation label.
  • Trench Network Quantities – Added option to use a user-specified TIN as the reference surface. For the plan view map, added option to label stations.

Point Cloud

  • Import – Added function to import cloud data from CAD points.
  • Export – Added support for E57 format and RCS format.
  • Bare Earth – Added option to put the ground points into a region instead of creating a new cloud. Added method to create a cloud of the non-ground points.
  • Create Polyline – Added method to create polylines with tangential arcs.
  • Edit Polyline – Added function to zoom scene to current polyline in editor dialog.
  • Extract Slices – New function to view cross sections of cloud data and create points and polylines.
  • Curb Breaklines – New method to create 3D polylines for top and bottom of curb by using edge clusters.
  • Create Breaklines By Slope – New function to create 3D polylines at the boundaries of slope zones.
  • Color Lines – Added new method for creating polylines that follow color lines in the cloud such as roadway paint stripes and new method to follow color boundaries such as edge between pavement and grass.
  • Slope Lines – New function to create breakline polylines by following a slope grade break.
  • Feature Extraction – Added batch process method to extract multiple features at a time.
  • Power Lines – New function to extract overhead wires as polylines.

Data Conversions

  • Geoids – Added geoids for Germany-Hessen, Thailand and Lithuania.
FOR CARLSON’S CAD-BASED PRODUCTS

Carlson products installed on top of the CAD products of IntelliCAD or AutoCAD, are subject to the same requirements as the CAD engine itself. Please follow the requirements for the CAD platform listed below and allow an additional 750 MB of hard-drive space for the Carlson application.

INTELLICAD

CARLSON 2020-2022 WITH INTELLICAD 9.X OR 10.X

  • Compatible with 64 bit Windows 7, 8, 8.1, 10, 11 (Vista and 32 bit are not supported)

CARLSON 2016-2019 WITH INTELLICAD 8.X

  • Compatible with 32 or 64 bit Windows Vista, 7, 8, 8.1, and 10

HARDWARE REQUIREMENTS

Intel® Pentium® 4 or comparable (minimum), Intel i7 or at least Intel i5 or comparable (recommended). Due to the variety of processors on the market, one can use cpubenchmark.net/cpu_list.php to do comparative analysis. While the overall processor score matters, the single thread performance is of the most interest.

  • 32-bit Windows 7-8.1: 1 gigabyte (GB) of RAM minimum, 4 GB recommended.
  • 64-bit Windows 7-10: 2 GB of RAM minimum, 8+ GB recommended.
  • Windows Vista: 1 GB of RAM minimum, 4 GB recommended.
  • Windows XP: 512 megabytes (MB) of RAM minimum, 2 GB recommended.

Graphics card compatible with OpenGL Version 1.4 or higher:

  • Recommended are desktop graphics level discrete (not integrated cards like Intel HD) graphics cards.
  • Preferably Nvidia Geforce due to their more consistent driver support.
  • Discrete ATI/AMD cards will be adequate, but ATI’s driver support has been spotty and user is frequently deferred to the computer manufacturer for support.
  • Professional Nvidia Quadro cards are not currently recommended due to driver issues.
  • Powerful gaming cards are not required and probably would not provide as much benefit as investment in more memory or better CPU

Learn more information about IntelliCAD.

EMBEDDED AUTOCAD® OEM ENGINE
CARLSON SOLUTIONS BASED ON AUTOCAD 2018 EMBEDDED
TAKEOFF R10, R11 / SURVEY OEM 2018-2021

Please note the CPU compatibility below: older AMD CPUs like Athlon XP+ do not support SSE2 technology and can not run Embedded AutoCAD 2018 products.

  • Microsoft Windows 10 (64-bit only); Microsoft Windows 8.1 with Update KB2919355 (32-bit & 64-bit); Microsoft® Windows® 7 SP1 (32-bit & 64-bit)
  • 4 GB RAM (minimum), 8 GB (recommended)
  • 2 GB free disk space for installation
  • 1360 x 768 (1920 x 1080 recommended) with True Color
  • Windows Internet Explorer® 11 or later
  • Install from download
CARLSON SOLUTIONS BASED ON AUTOCAD 2013 EMBEDDED
TAKEOFF R6, R7, R8, R9 / SURVEY OEM 2013, 2014, 2015, 2016, 2017

Please note the CPU compatibility below: older AMD CPUs like Athlon XP+ do not support SSE2 technology and can not run Embedded AutoCAD 2013 products.

  • Windows® 8 and 10 Standard, Enterprise, or Professional edition (8 requires installation of AutoCAD LT 2013 Service Pack 2); Microsoft® Windows® 7 Enterprise, Ultimate, Professional, or Home Premium edition (SP3 or later) with an Intel® Pentium® 4 or AMD Athlon™ dual-core processor, 3.0 GHz or higher with SSE2 technology.
  • 1 GB RAM (minimum), 8 GB (recommended)
  • 1.4 GB free disk space for installation
  • 1,024 x 768 VGA display with true color
  • Internet Explorer 7.0 or later
  • Install from download
CARLSON SOLUTIONS BASED ON AUTOCAD 2010 EMBEDDED
TAKEOFF R4, R5 / SURVEY OEM 2010, 2011, 2012

Please note the CPU compatibility below: older AMD CPUs like Athlon XP+ do not support SSE2 technology and can not run Embedded AutoCAD 2010 products.

  • Microsoft Windows 7, or,
  • Windows Vista, SP1 or later (Enterprise, Business, Ultimate, Home Premium) operating system, with,
  • Intel Pentium 4 processor or AMD Athlon dual-core processor, 3.0 GHz or greater with SSE2 technology
  • 1 GB RAM (minimum), 8 GB (recommended)
  • 850 MB free disk space for installation
  • 1024 x 768 VGA display with true color
  • Microsoft Internet Explorer 7.0 web browser or later

Or

  • Microsoft Windows XP Professional or Home Edition operating system (SP2 or later), with,
  • Intel Pentium 4 or AMD Athlon dual-core processor, 1.6 GHz or greater with SSE2 technology
  • 512 MB RAM
  • 850 MB free disk space for installation
  • 1024 x 768 VGA display with true color
  • Microsoft Internet Explorer 7.0 web browser or later
CARLSON SOLUTIONS BASED ON AUTOCAD 2007 EMBEDDED
TAKEOFF R2, R3 / SURVEY OEM 2007, 2008, 2009
  • Microsoft Windows 7, or,
  • Windows Vista, or,
  • Windows XP Home or Professional SP1 or better, or,
  • Windows XP for Tablet PC SP2, or,
  • Windows 2000 SP3 or better
  • Pentium III 800 minimum, Intel Pentium IV recommended
  • 512 MB RAM
  • 550 MB free disk space for installation
  • 1024 x 768 with True Color
  • Microsoft Internet Explorer 6.0 SP1 or higher
  • Mouse, trackball, or compatible pointing device
CARLSON SOLUTIONS BASED ON AUTOCAD 2004 EMBEDDED
TAKEOFF R1 / SURVEY OEM 2004, 2005, 2006
  • Microsoft Windows XP (Professional, Home Edition, or Tablet PC Edition), or,
  • Windows 2000, or Windows NT 4.0 (SP6a or later)
  • Pentium III 800 minimum, Intel Pentium IV recommended
  • 256 MB RAM
  • 300 MB free disk space for installation
  • 1024 x 768 VGA with true color (minimum)
  • Microsoft Internet Explorer 6.0
  • Mouse, trackball, or compatible pointing device
AUTOCAD®

Please visit the AutoCAD System Requirements page for current specifications which are subject to change without advance notice. Please visit the Autodesk summary of the Operating system compatibility for AutoCAD (Autodesk Bulletin TS14078105) for historical references between AutoCAD and its supported operating system(s).

Please see contents above for hard disk space requirements for the Carlson application.

PHOTOCAPTURE STANDALONE

Hardware Minimum Requirements Recommended Most PowerfulCPUG4560I7I9RAM16GB32GB64GB or more SSD MVMe 250 GB free1 TB free2 TB or more Graphics Card not required*not required*not required*

* Nvidia Geforce series cards are recommended for other Carlson Software product

CARLSON SOFTWARE WORKS FOR YOU

A customer’s relationship with Carlson Software goes beyond simply purchasing our software – with Regional Managers throughout the country, free technical support for life, and training options for any budget – we’ve got you covered!

DIRECT TECHNICAL SUPPORT
  • Hours: Monday – Friday, 8:00 AM – 6:00 PM (EST)
  • E-mail: moc.wsnoslrac@troppus
  • Problems/Suggestions: Send in a report
  • Telephone: 606-564-5028
  • Fax: 606-564-6422
